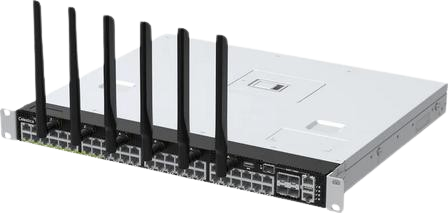

Product-IG355

✅ 1U rack-mount open bare-metal edge switch compliant with OCP design standards, supports disaggregated hardware & software, compatible with SONiC and other mainstream open-source network OS.

✅ Rich multi-rate downlink ports: 32×1G RJ45 + 16×2.5G multi-speed RJ45; 4×25G SFP28 high-speed uplink optical ports for high-bandwidth upstream aggregation.

✅ Full IEEE 802.3bt PoE++ support on all electrical ports, max 90W power output per port, capable of powering Wi-Fi 6/6E high-power APs, PTZ dome cameras, industrial IoT terminals and edge computing devices without external power adapters.

✅ Powered by Broadcom TD3.X2 high-performance switching chip, 172Gbps non-blocking switching capacity, low latency for edge video and industrial real-time traffic.

✅ Built-in Intel Denverton modular x86 multi-core control CPU (configurable 4-core / 8-core), up to 32GB ECC DDR4 memory and M.2 NVMe high-speed SSD storage, powerful edge computing and protocol processing capability.

✅ Hardware-accelerated 256-bit MACsec link encryption to protect data transmission security of enterprise and industrial private networks.

✅ Optional IEEE1588v2 + SyncE high-precision clock synchronization module, meets strict timing requirements for industrial control and financial transaction networks.

✅ Reserved external antenna expansion interfaces, supports expansion of Wi-Fi 6/6E wireless access and 5G/LTE cellular modules; physical SIM + programmable eSIM dual-card design for wireless link backup of wired network failures.

✅ High-reliability industrial-grade hardware architecture: hot-swappable redundant AC power supplies, redundant cooling fan modules, easy maintenance without powering off the whole device.

✅ Dual airflow design (front-to-back / back-to-front), freely configurable to match different computer room cooling layout architectures.

✅ Complete L2/L3 rich forwarding features: VLAN, STP/RSTP/MSTP, static routing, OSPF, ACL, QoS traffic scheduling, port aggregation, mirroring, loop detection, suitable for multi-service converged access scenarios.

✅ Comprehensive network security functions: port isolation, 802.1X authentication, MAC address binding, DoS attack defense, access control list, effectively isolate broadcast storms and resist network intrusion.

✅ Support TR069 centralized remote O&M, remote configuration deployment, batch firmware upgrade, real-time device status monitoring and remote fault diagnosis, reducing on-site maintenance costs for mass distributed edge nodes.

✅ Wide operating temperature range, stable continuous operation in medium and large computer rooms, outdoor communication cabinets and factory workshop equipment rooms; industrial EMC anti-interference design to adapt to complex electromagnetic environments.
