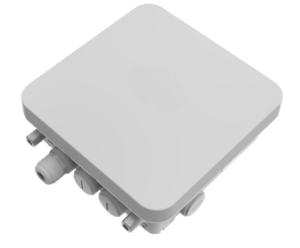

WiFi Access Point
WL8200-Outdoor
802.11ac Wave2 + 2GE with POE
2.4G：2×2 MIMO；5G：4×4 MU-MIMO
Fat / Fit switchable Outdoor Type
OVERVIEW
DCN WL8200-Outdoor is a Wi-Fi 6 (802.11ax) outdoor wireless access point with external antenna interfaces. It supports concurrent dual-band operation on 2.4GHz and 5GHz, delivering a maximum aggregate wireless rate up to 1775 Mbps (575 Mbps @2.4GHz + 1200 Mbps @5GHz).
Equipped with 2×2 MU-MIMO, OFDMA, TWT and spatial reuse technologies, the AP greatly improves multi-terminal concurrent efficiency and reduces terminal power consumption. It supports flexible Fat/Fit switchable mode, capable of standalone operation or centralized management together with DCN wireless controllers for large outdoor wireless networking.
The device adopts ruggedized hardware design, supporting IP66 dustproof & waterproof construction and wide-temperature working range. It reserves external antenna interfaces for flexible matching of high-gain directional or omnidirectional antennas to adapt to diverse outdoor coverage demands. Integrated complete wireless security mechanisms, seamless roaming and traffic scheduling capabilities, WL8200-XT2 is ideal for scenic spots, industrial parks, campus periphery, smart communities and outdoor public Wi-Fi coverage.
The AP supports flexible Fat/Fit switchable operation mode. It can run independently as a fat AP, or be centrally managed together with DCN wireless controllers for large-scale wireless networking. Built-in dual Gigabit Ethernet ports support 802.3af/at PoE power supply for simple deployment.
Integrated with WIDS/WIPS security defense, multi-SSID & VLAN isolation and seamless roaming capability, WL8200-I3(R2) delivers stable, high-density Wi-Fi access. It is an ideal wireless solution for offices, exhibition halls, hotels, education campuses and commercial spaces.
IS1205-1FX4FE is also a high cost-effective easy-to-use device, which provides essential industrial Ethernet networking function, such as wide range power input 12-58VDC, redundant power design with polarity reverse/over-voltage protection, robust IP40 fan-less housing with Din-rail installation, wide operation temperature from -40°C to 75°C as well as high-level EMI/EMC capability and so on. It is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions exceed commercial product specifications.
FEATURES
✅ Complies with IEEE 802.11ax (Wi-Fi 6) standard, dual-band concurrent transmission, total wireless rate up to 1775 Mbps (575 Mbps @2.4GHz + 1200 Mbps @5GHz).
✅ Adopts 2×2 MU-MIMO, OFDMA, TWT and spatial reuse technology, boosting multi-user concurrent capacity and lowering terminal power consumption.
✅ Fat/Fit switchable operation mode. It can work independently without a controller, or be centrally managed by DCN wireless controller for large-scale outdoor networking.
✅ Reserved external antenna interfaces, freely matched with high-gain omnidirectional or directional antennas to satisfy diverse long-distance coverage requirements.
✅ Industrial-grade hardware with IP66 dustproof and waterproof enclosure, supporting wide-temperature operation for harsh outdoor environments.
✅ Equipped with Gigabit Ethernet port, supports IEEE 802.3af/at PoE power supply, simplifying field wiring construction.
✅ Supports up to 32 SSIDs, VLAN tagging and user isolation to realize differentiated service management for multiple groups.
✅ Built-in WIDS/WIPS wireless intrusion prevention, rogue AP detection & suppression, multiple encryption and authentication mechanisms to guarantee network security.
✅ Supports 802.11r fast seamless roaming, Airtime Fairness, WMM QoS and IGMP Snooping to optimize outdoor multi-terminal access experience.
✅ Rich authentication options including MAC authentication, Portal, SMS authentication, adapting to commercial and public Wi-Fi operation scenarios.
SPECIFICATIONS
| Basic Standards | Model: WL8200-Outdoor |
| Wireless Standard: IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) | |
| Operation Mode: Fat / Fit switchable | |
| Radio & Throughput | 2.4GHz: 2×2 MU-MIMO, up to 575 Mbps |
| 5GHz: 2×2 MU-MIMO, up to 1200 Mbps | |
| Total Aggregate Rate: 1775 Mbps | |
| Channel Width: 20MHz / 40MHz (2.4G); 20/40/80MHz (5G) | |
| Antenna Interface: 4 × N-type female external antenna ports | |
| Antenna: External high-gain omnidirectional / directional antenna (optional) | |
| Interfaces | 1 × 10/100/1000 Mbps Gigabit RJ45 Ethernet Port 1 × Console debug port |
| LED indicators for power, network and radio status | |
| Power Supply | PoE Input: IEEE 802.3af / 802.3at |
| Optional DC Input: 12V DC | |
| Max Power Consumption: ≤18W | |
| Physical & Environment | Enclosure Protection Grade: IP66 dustproof & waterproof |
| Installation: Pole mount, wall mount | |
| Operating Temperature: -40 ℃ ~ +65 ℃ | |
| Storage Temperature: -45 ℃ ~ +70 ℃ | |
| Humidity: 5% ~ 95% (non-condensing) | |
| Wireless Capacity & VLAN | Max SSID Quantity: Up to 32 |
| Max associated clients per radio: 128 | |
| Support VLAN tagging & per-SSID user isolation | |
| Security Features | Encryption: WEP, WPA/WPA2/WPA3-PSK, 802.11i, WAPI |
| Authentication: MAC, Portal, SMS, LDAP | |
| WIDS / WIPS, rogue AP detection & suppression | |
| Anti-DoS attack, wireless frame filtering & ACL | |
| Advanced Function | OFDMA, MU-MIMO, TWT, Spatial Reuse, Beamforming |
| 802.11r fast seamless roaming | |
| Airtime fairness, high-density access optimization | |
| Wireless escape: local forwarding when AC offline | |
| WMM QoS, IGMP Snooping | |
| Management: WEB, SSH, SNMP, TR069 |
